RFQ: Example of RFQ simulation using TRACKv37

Download from this folder ...

  • content.txt: Description of the content of this example
  • track.dat: TRACK general input file
  • sclinac.dat: TRACK lattice input file
  • fi_in.dat: TRACK phase input file
  • Graph.cfg: TRACK graphics configuration file
  • RFQ.#30: RFQ main input file: cell by cell data
  • eh_EMS.#20: 3D Electrostatic field for RFQ input matcher cell
  • eh_EMS.#21: 3D Electrostatic field for RFQ output matcher cell
  • linac.dat: TRACK intermediate lattice file
  • ini_dis.dat: TRACK intermediate initial distribution file
  • wtmp.dat: TRACK reference particle output file
  • out.dat: TRACK beam output file
  • coord.dat: TRACK surviving particles output file
  • lost.dat: TRACK lost particles output file
  • emit_level.dat: Emittance levels output file
  • log.dat: TRACK log file

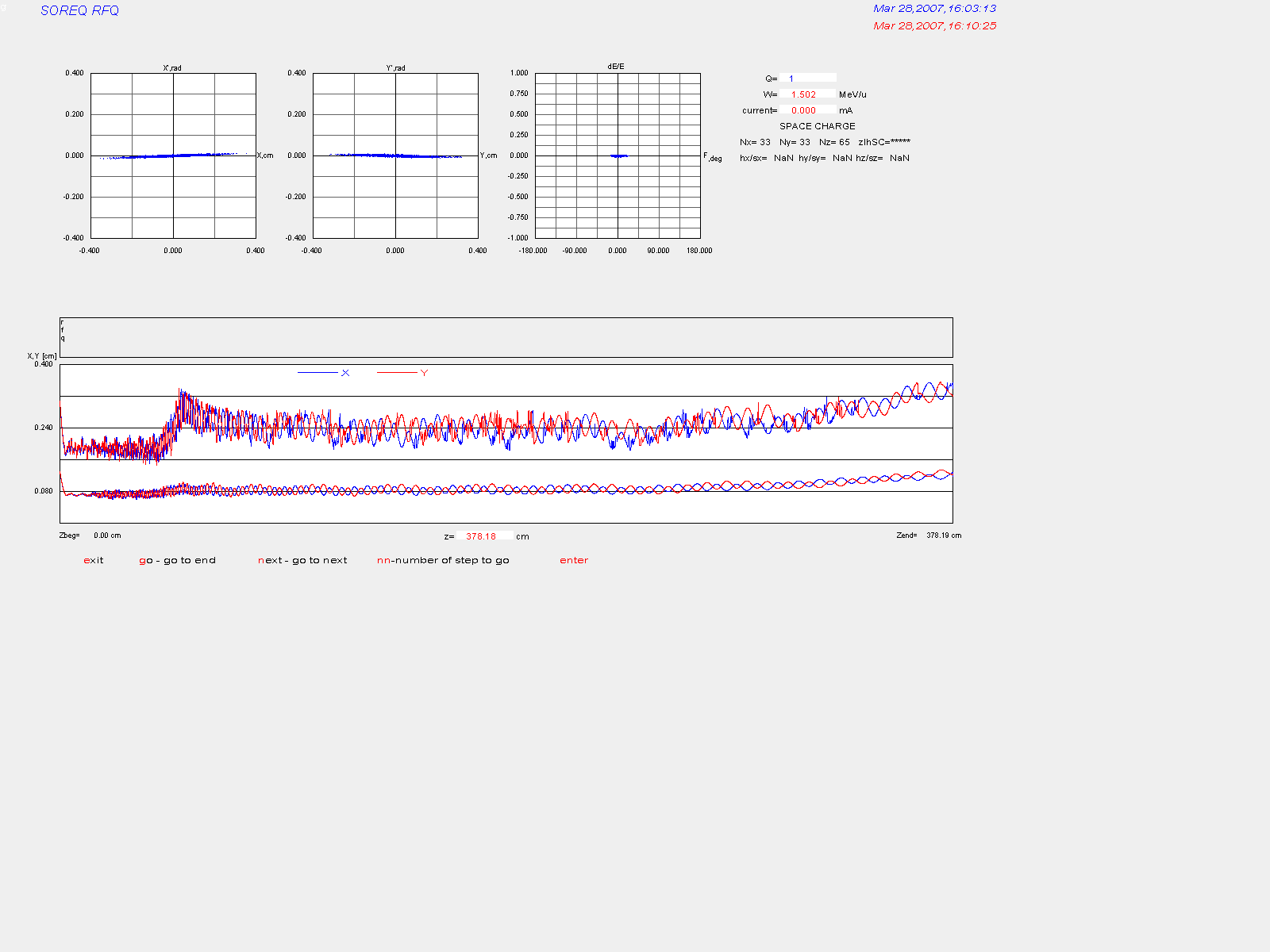

  • g1.bmp: TRACK graphics window, saved at the end of the run
